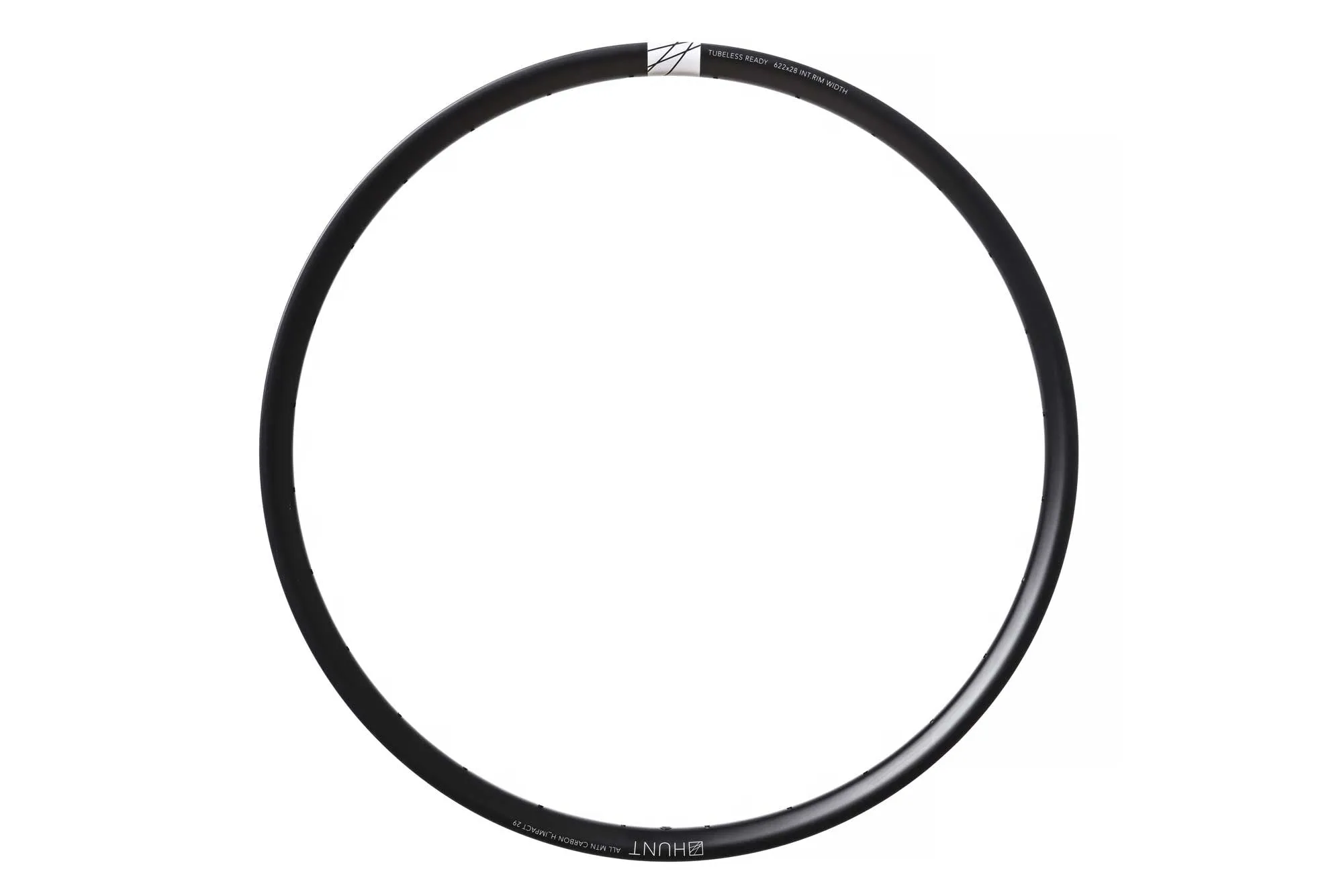

All-MTN Carbon: Front and rear specific rims optimized for compliancy up front and high impact strength out back
Responsive, compliant and incredibly strong
29" | 28 Wide Int | 500g
We put a huge emphasis on durability for the All-MTN rim - Unidirectional T24/30 with 3K weave reinforced spoke holes, Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration. The resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.
Front rim weight 535g – Excellent handling and vibration absorption due to the lower material density lay-up, matched to 28 spoke count to improve compliance and grip where it’s needed most.
Detailed Specifications
Rim
- Hookless Tubeless-ready – designed to work excellently with tubeless tyres.
- H_IMPACT Unidirectional T24/30 with 3K weave reinforced spoke holes.
- Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration
- H-lock bead-seat up-kicks for easy and secure tubeless installation
- 28mm internal width ideal for 2.3"-2.5" tyre widths, but also work very well with 2.25"-2.6".
- Maximum tyre pressure for this rim: Up to 2.5" do not exceed 40psi. 2.6 - 3.0" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tyre.
- ERD: 598mm
- Lacing: Cross 3
- Recommended Spoke Tensions: 105-120 kgf
